WiFi Stick TX-247

Verfügbarkeit: Auf Lager

Steuerinformationen: inkl. MwSt.

SKU: TX-247

Verkäufer: shop-technaxx

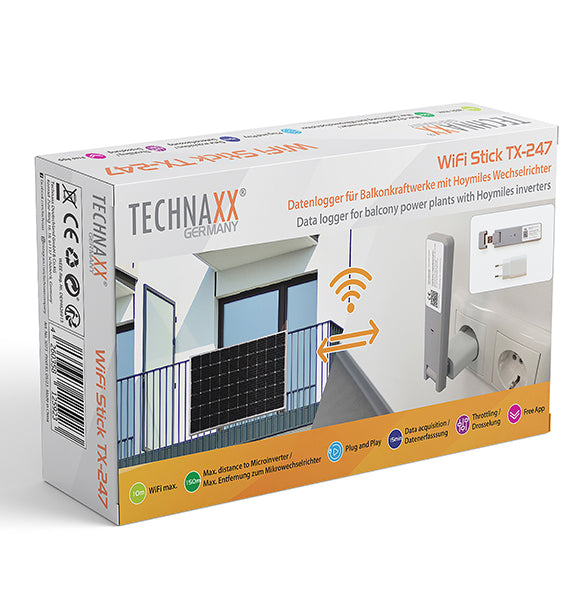

WiFi Stick TX-247

Besonderheiten

  • Data logger for balcony power plants with Hoymiles
  • inverters, HM & MI series
  • Module level monitoring, with up to 4 solar modules
  • (including data storage)
  • Remote management of the system via the S-Miles Cloud -
  • access via APP (Android + Apple) and web browser (The creation
  • of the S-Miles account can be done directly by the end user)
  • Real-time data and alarms on the S-Miles APP
  • Data acquisition of energy production (15 minutes interval)
  • Plug and Play - easy installation
  • Maximum distance (open area and depending on installation environment): up to 150m
  • Identical to Hoymiles DTU-Wlite
  • Direct connection via USB port (USB power adapter included)
  • Throttling of the Microinverter

Technical Spezifikationen:

  • Communication to Microinverter
  • Communication method: 2.4 GHz Proprietary RF (Nordic)
  • Frequency range: 2.403-2.475 GHz
  • Max. radiated output power: -2.72 dBm/0.53 mW
  • Maximum distance (open space): 150 m
  • Communication to Cloud (S-Miles)
  • Wi-Fi communication standard: Wi-Fi (802.11b/g/n)
  • Frequency range: 2,412-2,472 GHz
  • Max. radiated output power: 13.99 dBm/25.6 mW
  • Maximum distance (open space): 10 m
  • Data upload time: Every 15 minutes
  • Power Supply (Adapter)
  • Adapter input/output/consumption: 100-240V AC / 5V/2A / max. 5W


Mechanical Data

  • Ambient temperature range (°C): -20 to 55
  • Weight / Dimensions: 43 g / (W) 14.3 x (H) 3.3 x (D) 1.25 cm
